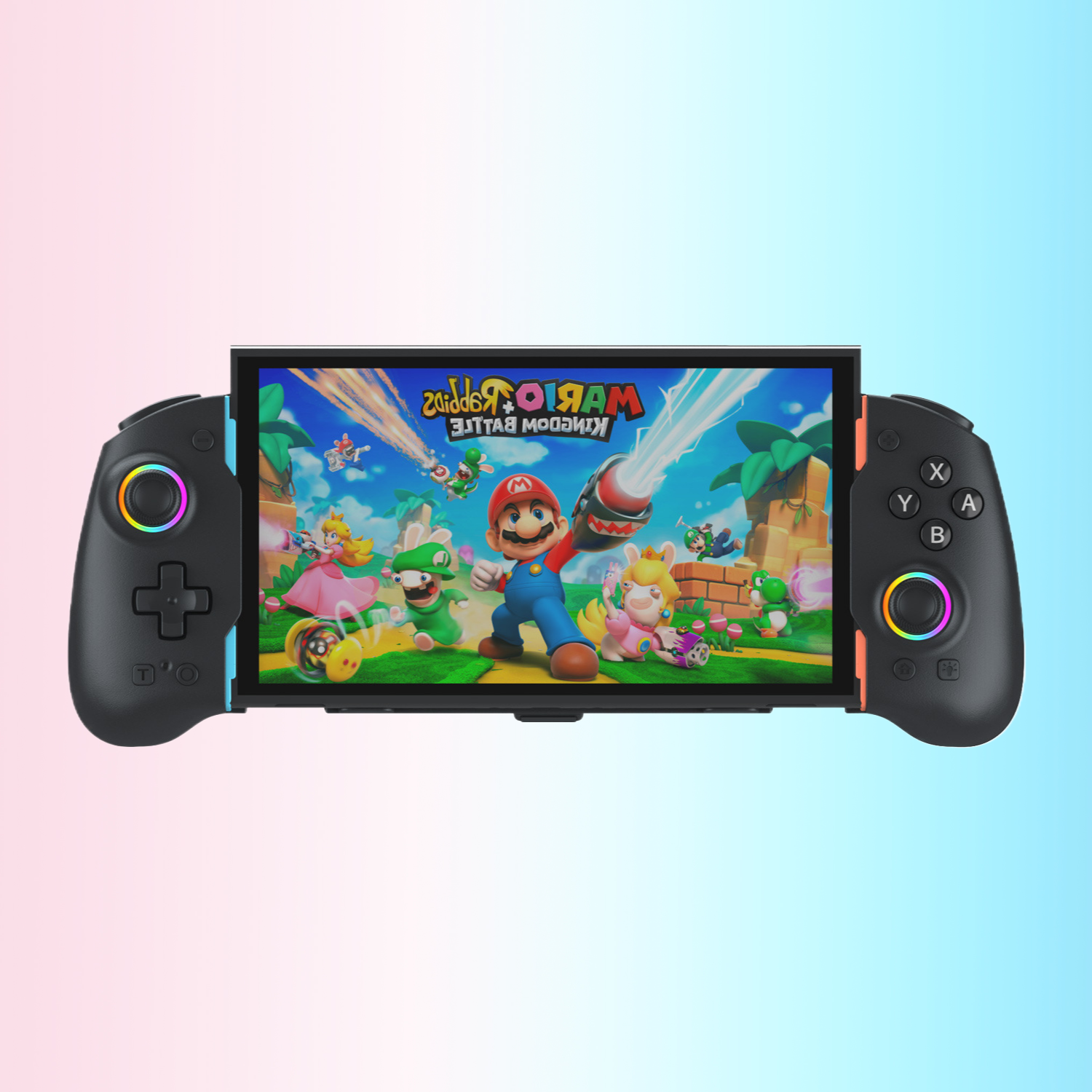

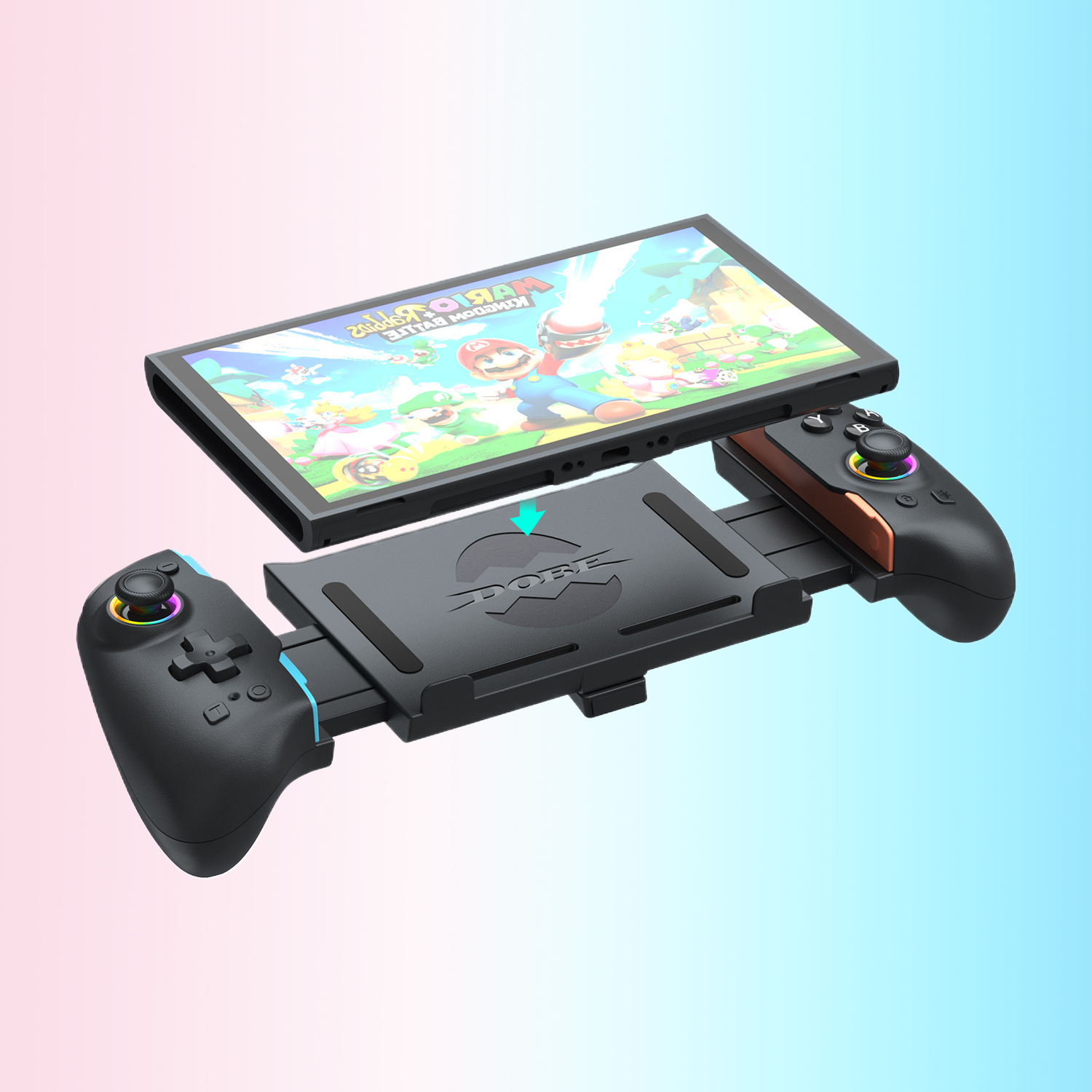

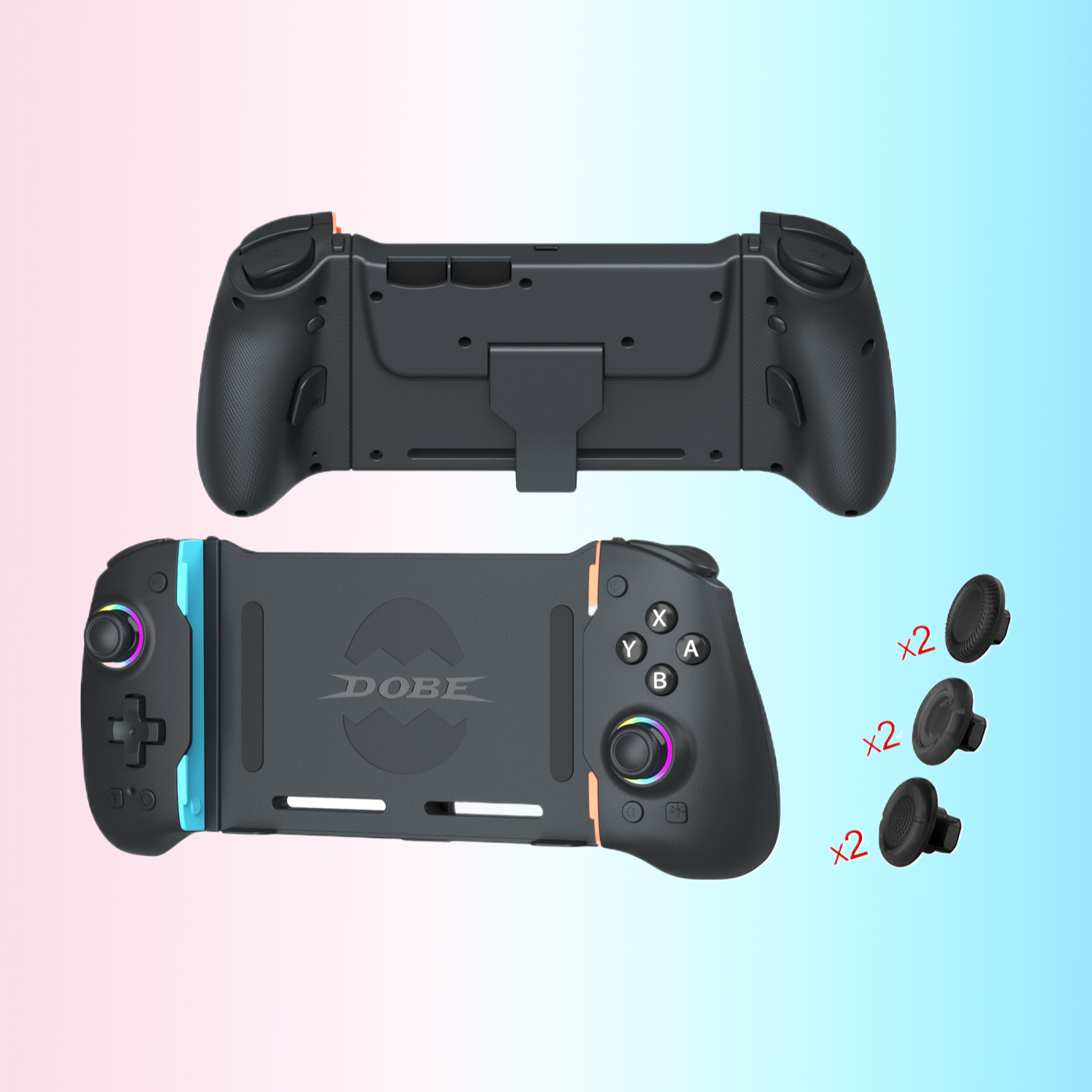

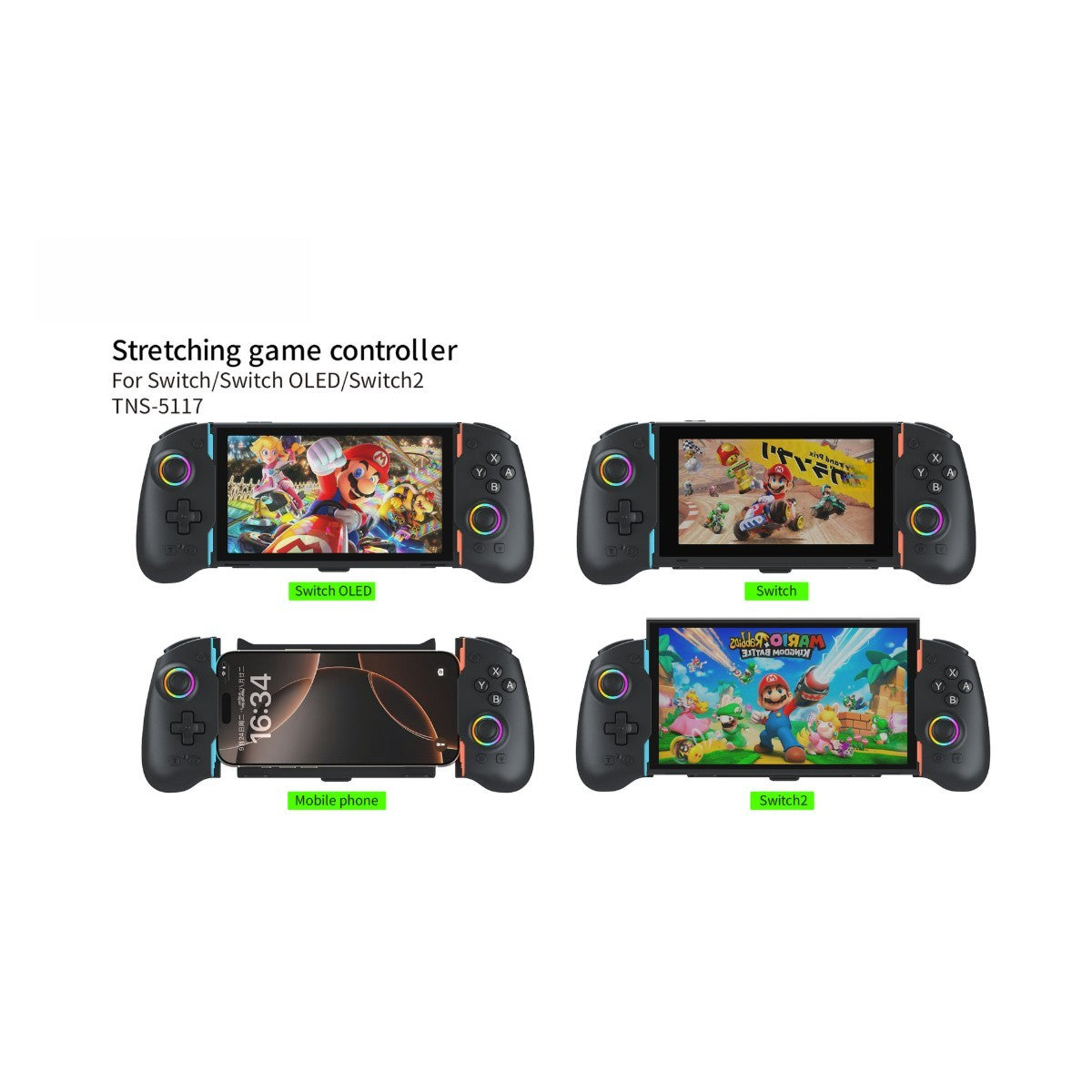

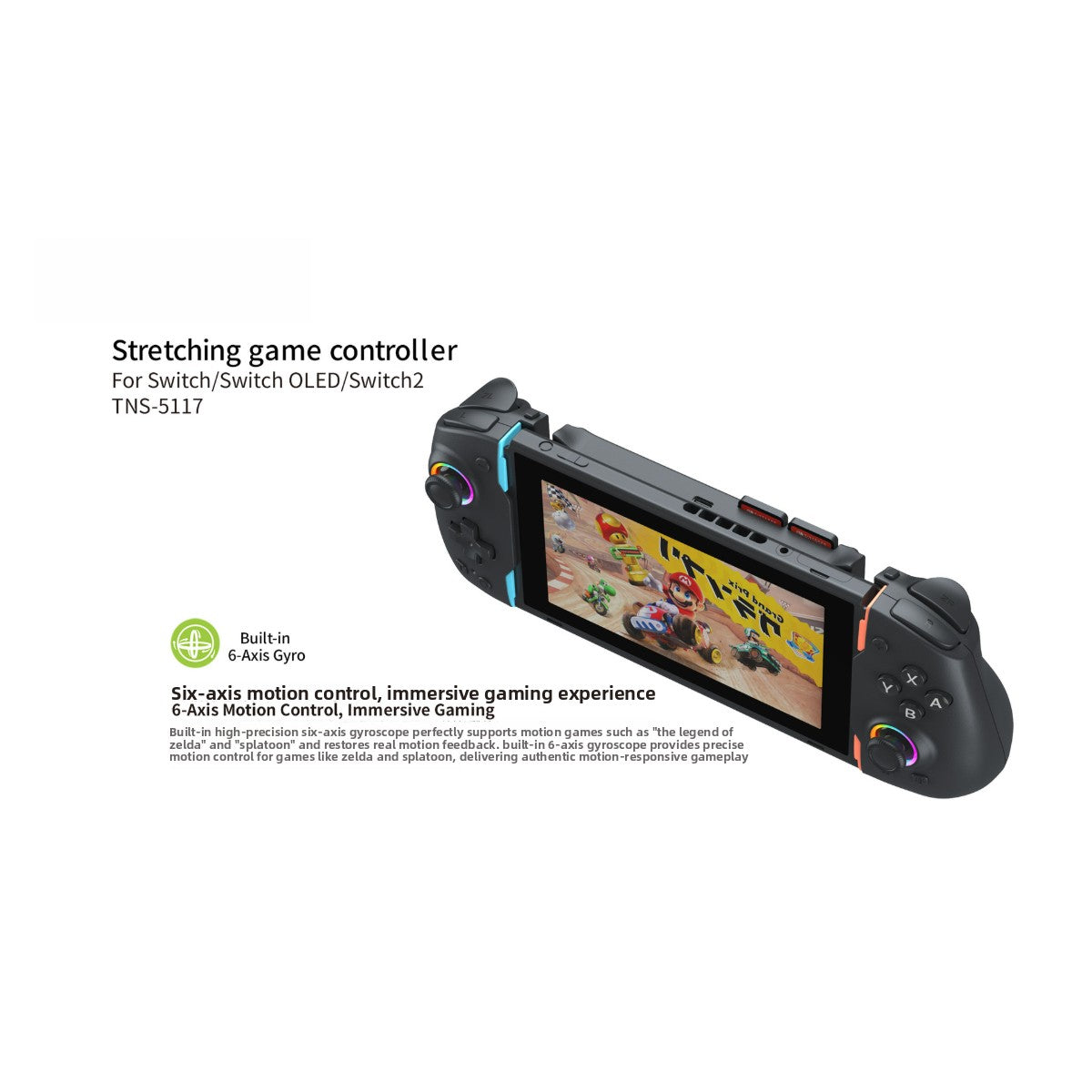

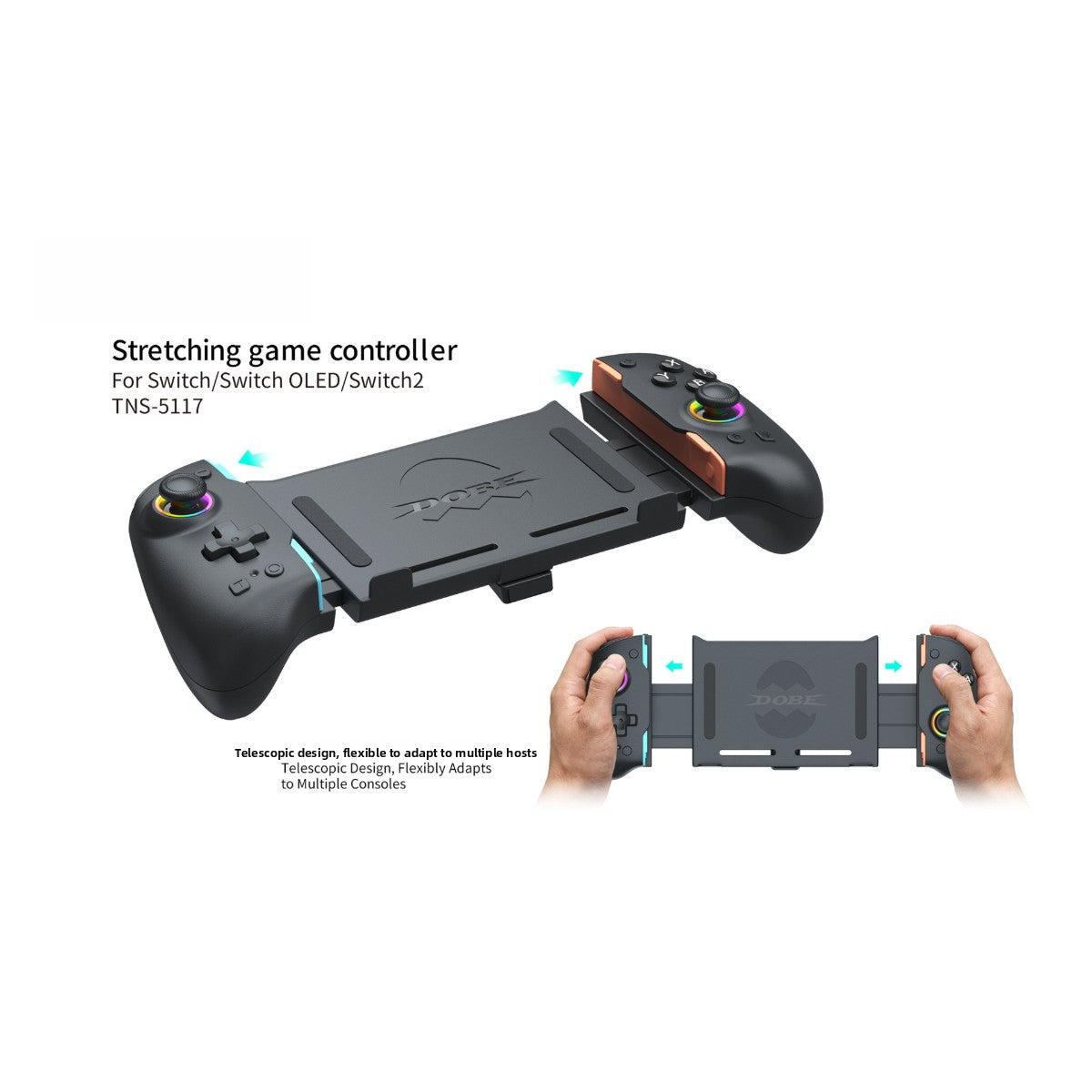

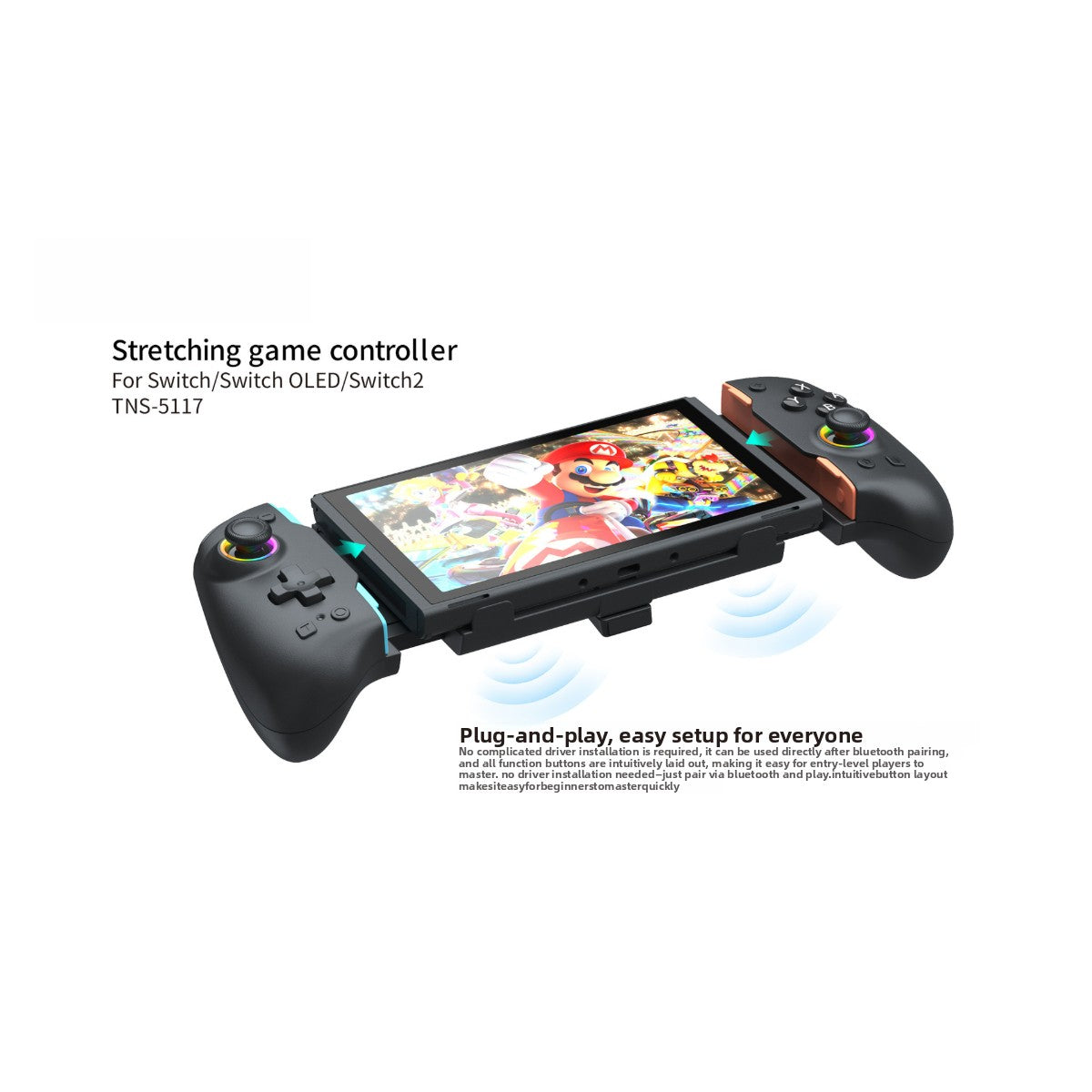

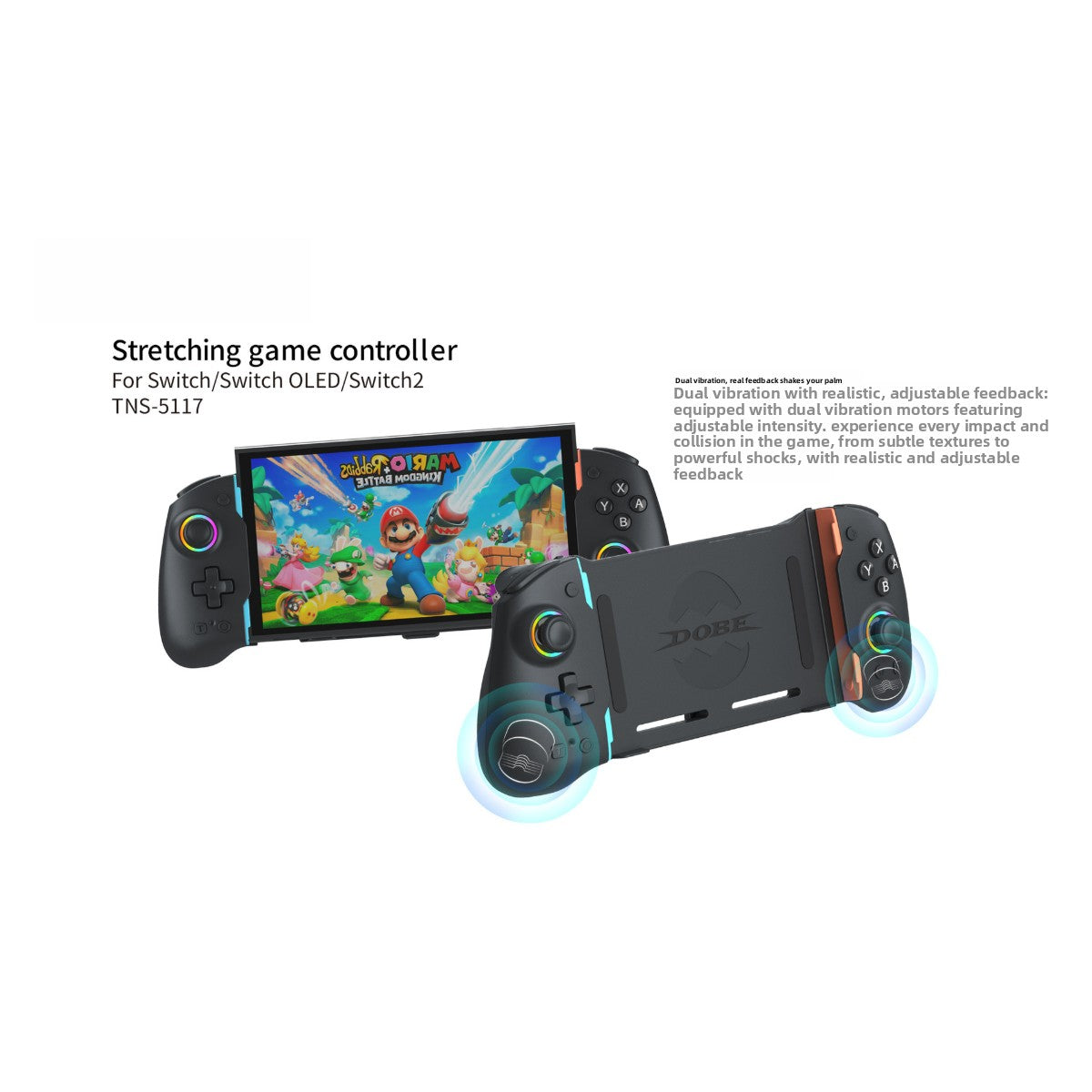

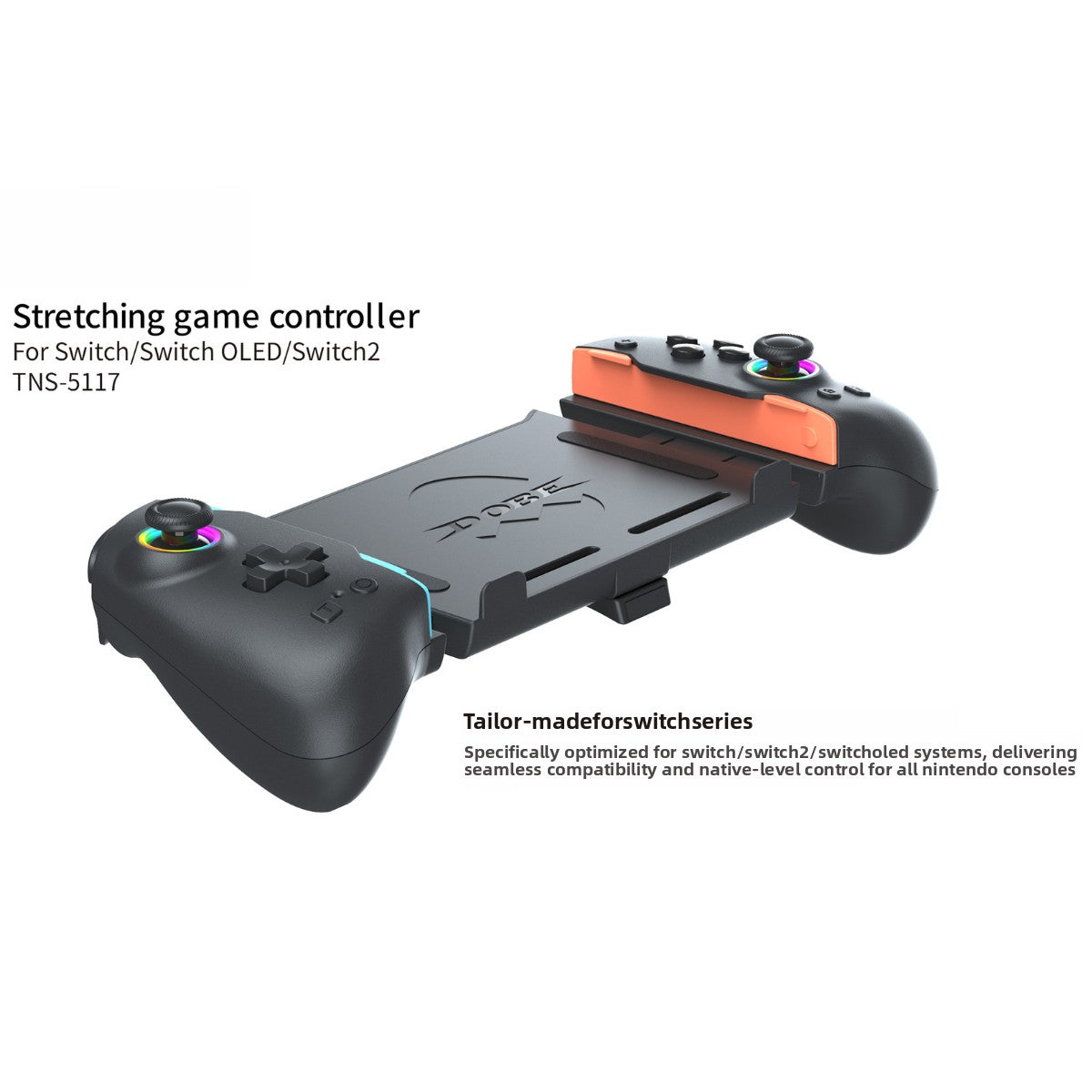

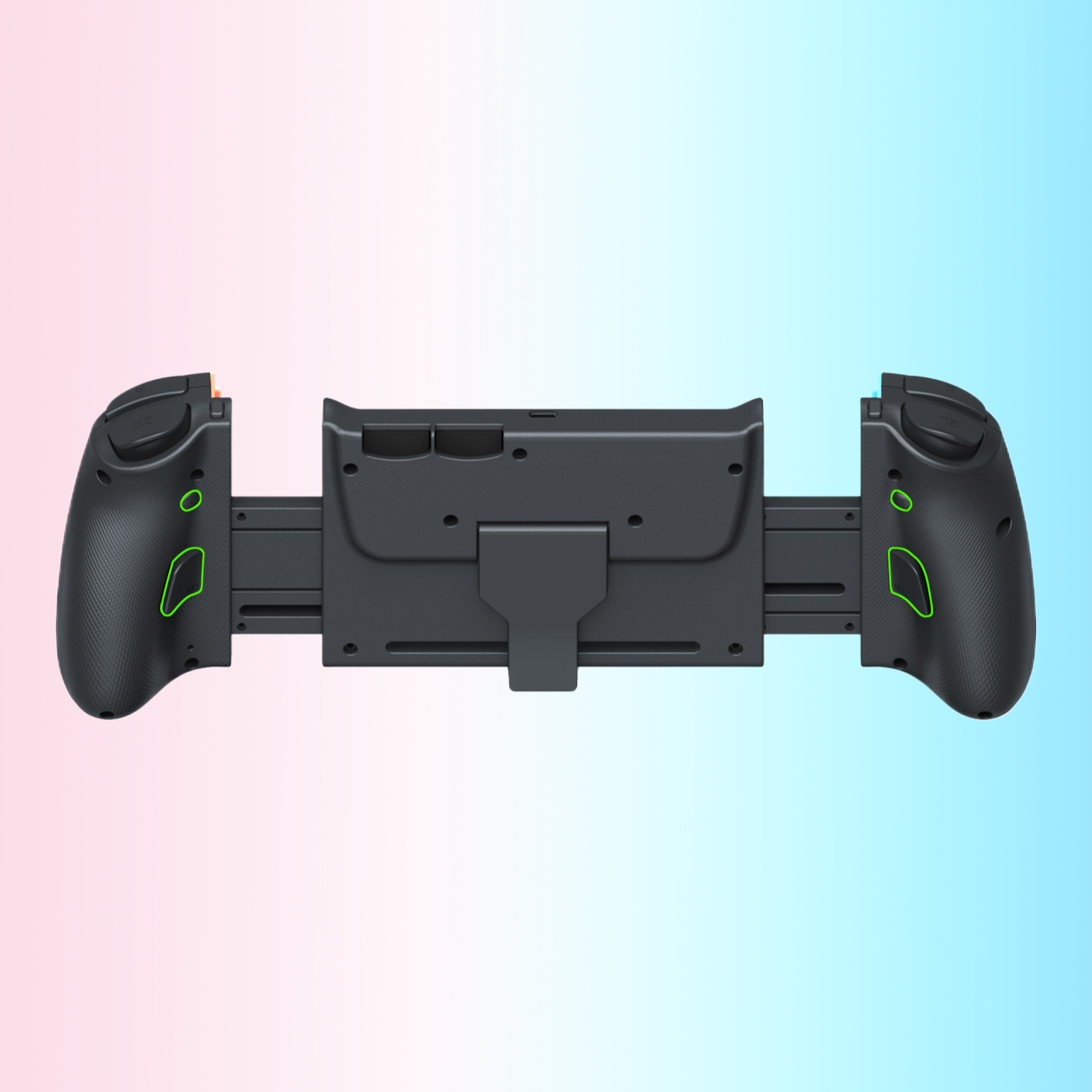

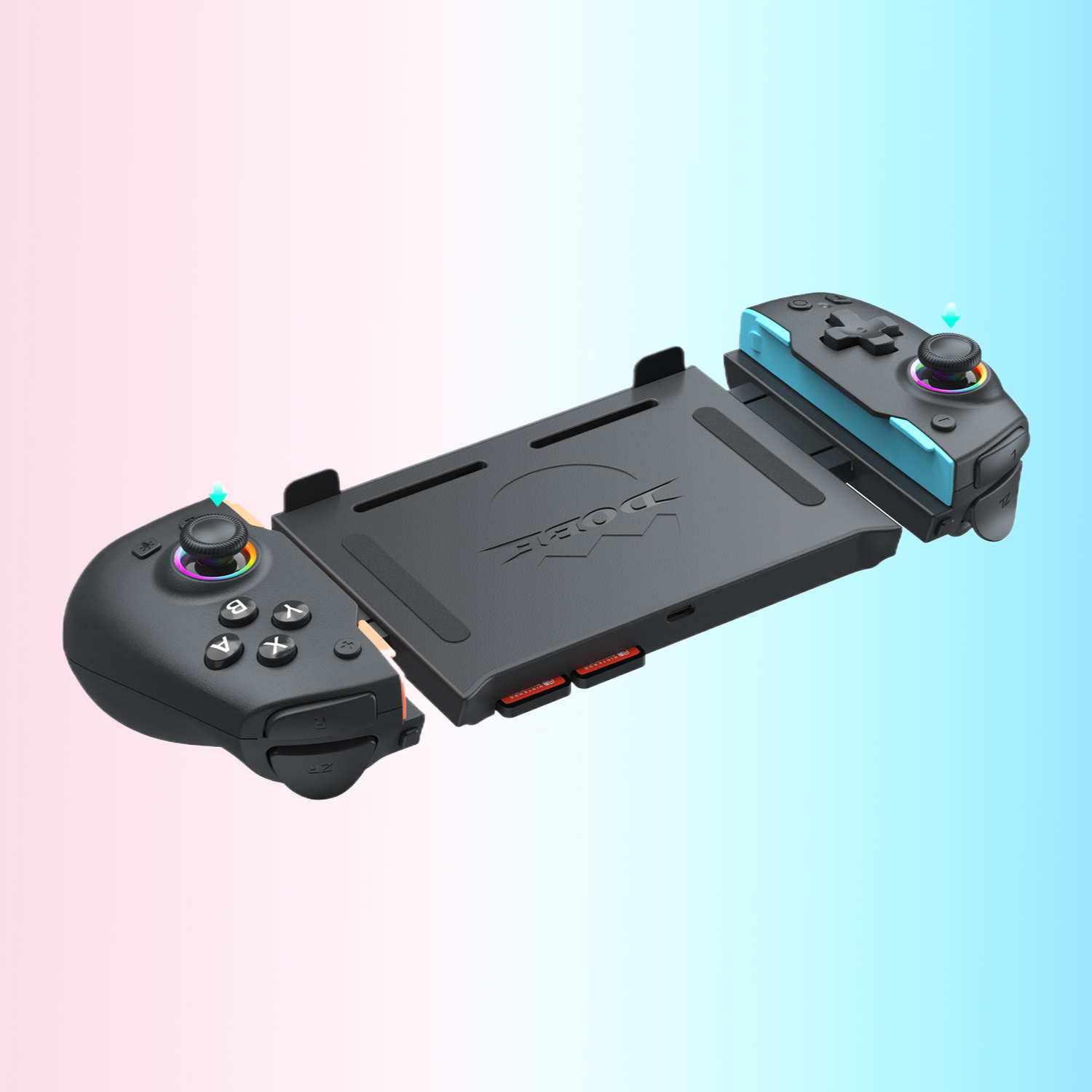

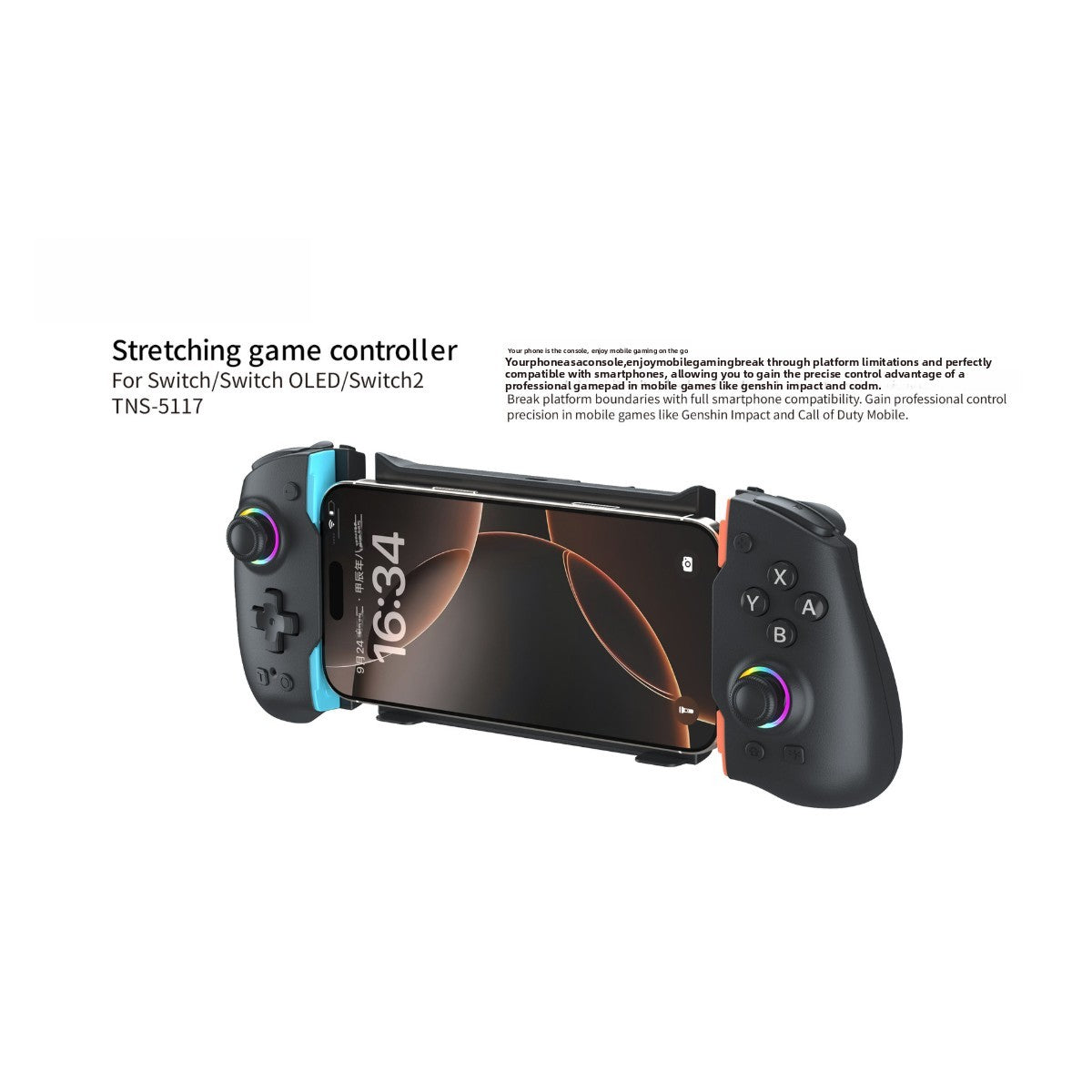

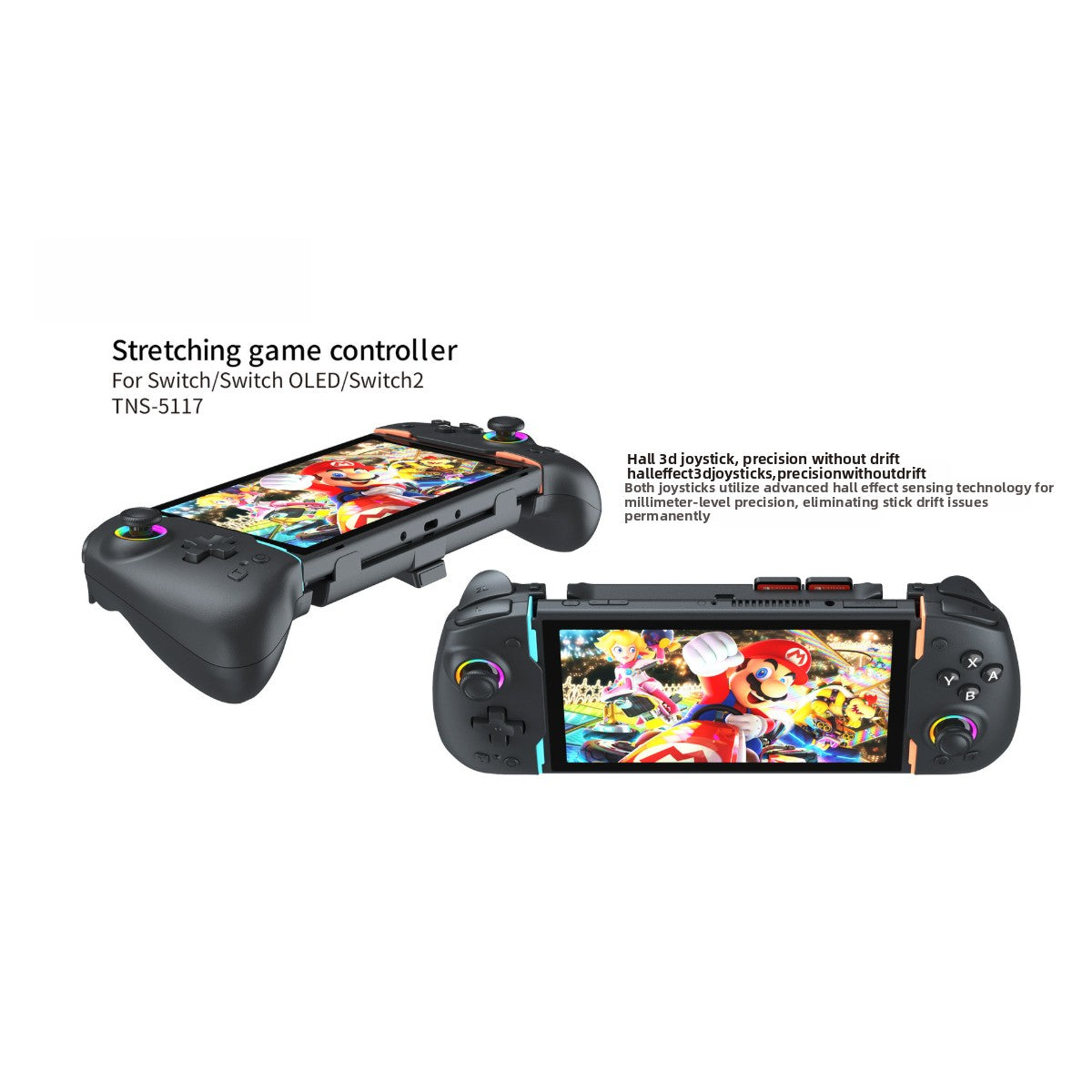

Wireless Controller for Nintendo Switch 2 OLED, Bluetooth Gamepad with Turbo, RGB LED Light, Motion Vibration TNS-5117

Instructions

N-S / N-S OLED / N-S 2 Connection

1.Enter pairing: The host enters the "Controller" → "Change Grip / Sequence" page.

2.Controller pairing: Press and hold the HOME button on the controller for about 3 seconds, the blue indicator light will flash rapidly, and once the connection is successful, the light will stay on.

Note: Do not touch the joystick or buttons during the pairing process to prevent misoperation.If joystick drift or offset occurs, please go to the console's "Settings" → "Calibrate Joystick" to fix it, or re-pair.

TURBO continuous fire

1.Supports Turbo function keys: A, B, X, Y, R, ZR, L, ZL, and the directional cross keys.

2.Set up semi-automatic continuous firing: Press and hold the target button + briefly press the T button

3.Set fully automatic continuous firing: Press and hold the button set to semi-automatic + the T key

4.Clear single-key continuous firing: Press and hold the target key set to fully automatic + the T key

5.Clear all burst-fire settings: Press and hold the T button for 5 seconds until the controller vibrates, then it's done

Lighting settings

1.Switch colors: Press the light button once to cycle through the colors in the following order (red / orange / yellow / green / cyan / blue / purple / fantasy colors)

2.Lighting mode: Double-click the light button to cycle through the modes (Color-changing breathing light → Seven-color breathing light → Turn off light)

3.Brightness adjustment: Light button + up arrow key (brighten), light button + down arrow key (dim), a total of four brightness levels

Charging Indicator

1.Unconnected state: The red light flashes while charging, and the green light stays on when the battery is fully charged

2.Connection status: While charging, the blue light flashes intermittently; when fully charged, the blue light stays on continuously

Product Parameters

Input Voltage: 5V

Charging current: ≤350mA

Battery capacity: 600mA
